New Construction Windows: Nailing Fin vs. Replacement, Costs and Install Steps

New construction vs. replacement windows

The glass, sash and frame can be identical. What changes is how the unit attaches to the house and how much of the wall has to come apart.

Angi notes that replacement units can cost slightly more to buy, but they win on labor because nobody has to open the wall. This Old House puts the gap even wider, saying retrofit installs cost 50% to 100% less than nail-fin installs in an existing home.

Replacement windows go by several names: insert, pocket and retrofit all describe a window that slides into the old frame. A full-frame replacement removes the old frame down to the rough opening. Our window replacement cost guide explains those two methods in detail.

How the nailing fin works

The fin is a thin strip around the outer edge of the frame. The installer sets the window into the rough opening from outside, holds the fin flat against the wall, and fastens it to the framing. Angi describes the fin as what holds the window in place while the rest of the wall is finished around it.

The bigger job of the fin is water control. Because it lies flat on the sheathing, it can be lapped into the housewrap and flashing tape like a roof shingle: lower layers tucked under upper ones, so water running down the wall is always pushed outward. This Old House credits that shingled seal for the tighter, more weathertight result of a nail-fin install.

A retrofit window has no such layer to lap into. It sits inside an old frame, and the joint between the two is sealed with caulk and trim. That works well when the old frame is sound and dry, but it puts the whole water barrier on a bead of sealant.

When to use new construction windows

New homes and additions

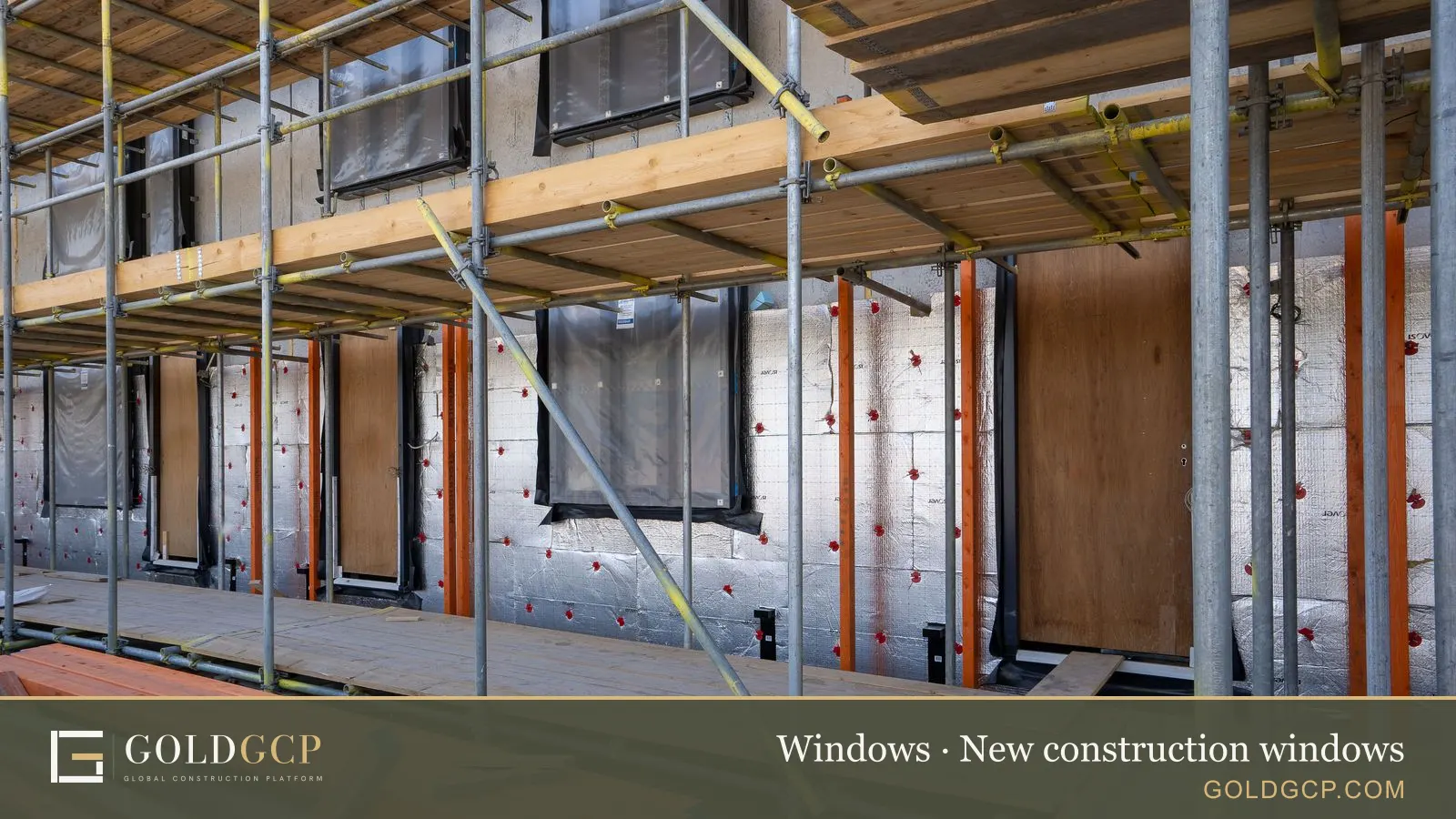

This is the default. The framing crew leaves rough openings, the windows go in once the sheathing and housewrap are on, and the siding crew covers the fins. Trying to use retrofit units here would leave you without a fin to flash.

Gut remodels and open walls

If the exterior siding is coming off anyway, for new cladding or added wall insulation, every opening is exposed. That is the cheapest moment to switch to nail-fin windows, since the most expensive part of the labor (opening the wall) is already paid for.

Changing size, shape or location

Retrofit units have to match the existing hole. If you want a taller bedroom window, a wider picture window over the sink, or a window where there was none, the opening must be reframed and the new unit flashed into the wall. HomeGuide notes that changing a window's size requires a permit, typically $50 to $200, for reframing the opening.

Rot, water stains or failed flashing

Angi recommends new construction windows when studs or frames are rotten or damaged, because a retrofit unit screwed into a soft frame will not hold or seal for long. If you see water stains on the wall below a window, have the opening checked before you order anything, since the fix may need the wall opened.

When a replacement window is the better call

Stick with retrofit units when the old frames are square, dry and solid, when you like the current sizes, and when the siding is in good shape. This Old House points out one trade-off: the replacement frame sits inside the old one, so the glass area shrinks a little.

What new construction windows cost

The window unit itself is priced like any other window of the same frame, glass and size. The table below shows national per-window prices by frame material.

US national averages for 2026, labor and standard materials included, from published cost guides (sources at the end of this page). Local prices differ: see the city table below, or enter your ZIP code in the calculator.

The extra cost of the nail-fin route sits in the labor and wall work around the window:

Two things push the price around. First, whether the wall is already open. In a new build, HomeGuide notes that labor per window is generally lower than in a replacement job, because nothing old has to come out. In a finished house, the nail-fin route is the expensive one, because siding, trim and sometimes drywall have to be removed and replaced. Second, whether the opening changes. HomeAdvisor says a window where there was none before needs framing, siding and finish work, and sometimes rerouted plumbing or wiring, which is how a single new opening can approach $5,000.

To build a budget for your own house, try the window cost calculator.

How a nail-fin window is installed

The Building America Solution Center, run for the U.S. Department of Energy, lays out the sequence for a flanged window in a wall with housewrap. The order matters more than any single product, because each layer has to lap over the one below it.

1. Cut the housewrap over the rough opening in a modified "I" shape. Fold the side and bottom flaps into the opening. Above the opening, cut a head flap, fold it up and tape it out of the way.
2. Fit a back dam along the inside edge of the sill, then apply self-adhesive sill flashing so it forms a pan. Press it into the corners and tape them. ASTM E2112 calls for a sloped pan when the sill is deeper than 6 inches.
3. Run sealant along the back of the head and side fins, then set the window plumb, level and square, following the manufacturer's fastening schedule.
4. Apply self-adhesive flashing over each side fin, running from the bottom of the sill flashing to 4 inches above the top of the head fin.
5. Apply head flashing across the top fin so it extends 1 inch past the side flashing on each end.
6. Fold the housewrap head flap back down over the head flashing and tape its bottom edge and corner cuts.
7. Insulate the gap between the frame and the rough opening from inside with low-expansion foam or backer rod and sealant, then install interior trim and, outside, the siding and exterior trim.

Note that the guide calls for sealant on the head and side fins only, not along the sill.

The installation standard

ASTM E2112, the Standard Practice for Installation of Exterior Windows, Doors and Skylights, covers fenestration in both new and existing construction. It describes barrier systems and membrane drainage systems, and states that installed performance depends in part on following proper procedures and on the coordination and sequencing of trades. Ask your installer which method they follow and whether it matches the instructions packed with the window. This Old House notes that most new window warranties require professional installation.

Picking the frame and glass

Frame material is a separate decision from the installation method. Vinyl windows cost the least and need no painting. Fiberglass windows move less with temperature changes. Wood windows suit historic and high-end homes, and aluminum windows give thin sightlines for modern designs. For glass, read the NFRC label and look at the U-factor and solar heat gain numbers for your climate; our energy-efficient windows guide explains what to look for. On the coast, check whether your lot sits in a wind-borne debris region before you order, because impact windows may be required.

Order early. ENERGY STAR says high-performance windows often take 6 to 8 weeks, and sometimes 12, to arrive, since most are built to order. On a new build, that lead time should be on the schedule before framing starts, so the openings can be framed to the exact rough-opening sizes the manufacturer lists.

Permits and inspections

New homes and additions are permitted as a whole project. For a remodel, HomeGuide notes a permit is needed when the window size changes. ASTM E2112 expects installers to know the local rules on means of egress, safety glazing and structural requirements, so a bedroom window that grows or shrinks has to keep meeting the escape-opening size. ENERGY STAR also advises keeping each window's NFRC label as a record of exactly what was installed.
